How to Flash Via SPFT with images Tutorial for Newbie
Hi guys I made a tutorial again for newbie on how to flash via SPFT in any kind of mediatek android device. I hope you can understand easily because I attached images. I used mt6572 for my scatter file using SPFT v5.13. In order to flash stockrom you need to
install driver based in your windows version. Just follow the procedure below.
Do it at your own risk and be careful. It can cause hardbrick or deadboot so follow my tutorial carefully.
Requirements:
PC/LAPTOP(WINDOWS OS)
USB CABLE
PHONE
1. Download Mediatek Driverand Extract then Install the driver for 32 or 64 bit operating system of windows 7.
2. Before you plug your phone in PC, you need to focus in Device Manager, then plug your phone without the battery you only have approximately 5 seconds to appear MT65xx device that shows under Other devices, you need to right click it as soon as you see it.
Then after you rightclick, click to Update driver software
3. Then choose - Browse my computer for driver software
Browse the Mediatek MT65xx Preloader Driver folder
Make sure you know the version of OS to choose the right driver for your PC.

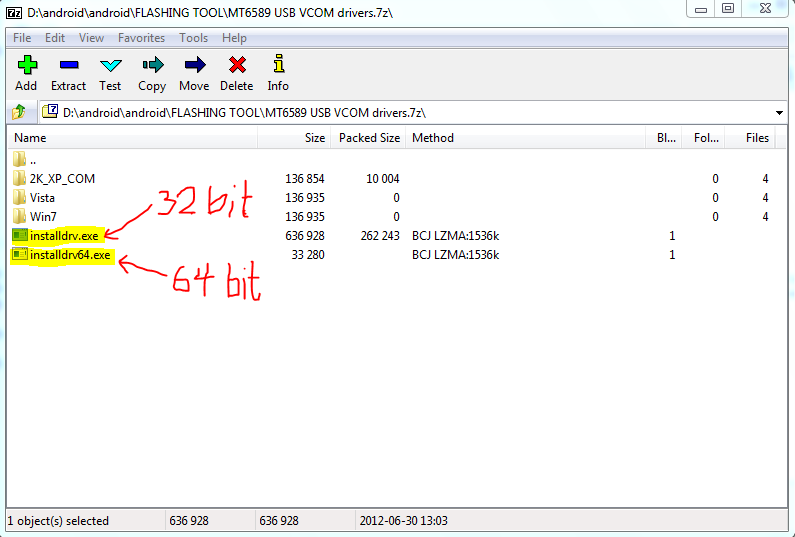

Choose your OS version, then choose if 32-bit or 64-bit for your PC.
E.G. s Win7 folder:
usb2ser_Win7.inf - if 32-bit
usb2ser_Win764.inf - if 64-bit
4. Another options, to find right driver for your phone is to open your internet while your phone is connected without the battery and automatically searching driver for your phone.
FOR WINDOWS 8/8.1/10 -INSTALLING DRIVERS
1. Download all necessary files and Enable USB Debugging mode in your phone..
In Device Manager Right click on PC name(Right Side) and then click on Add legacy hardware as shown in image below.
Now in Add Hardware Wizard click on Next » Install the Hardware that i manually select from a list (Advanced) » Show All Devices » Next » Have a Disk, Now select the any inf file from where you extracted the downloaded VCOM driver package.
3. Now Click on Next and select Install this driver software anyway and wait for finishing the process.
4.After installation is finished then Restart your computer, That's it.
If still not success in installing driver just Disabled Driver Signature Verification
1. Go to PC Settings>General>Troubleshoot>Advanced Options>Startup Settings>Disabled Driver Signature Enforcement>Then Restart
Once you disabled. Then follow the procedure above to install the driver. Once success proceed to next step.
5. Download SP_Flash_Tool_v5.1352.01.rarand extractthen click flash_ tool to open
6. Click Scatter_loading and open your scatter file like image below(I'm using mt6572 scatter File)
7. Check all except preloader. (If your device is hardbrick/deadboot apply check in preloader)
8. Click download
9. Wait until green circle appear
Remove your phone to usb cable then insert your battery and On your android phone..Enjoy!
Note: If not reboot try factory reset in recovery mode of your phone.
You can watch Video Tutorial below
Credits: Androidxda
You can download and select your device for available STOCKROM
If invalid IMEI occur after flashing follow this tutorial on how to fix IMEI.
Disclaimer:
This tutorial was tested in Android 4.2 Jellybean Version but can work also to Android Kitkat 4.4.4 and 6.0 Marsmallow, our team are progressive and knowledgeable to update this thread on how to flash Stockrom up to most updated version of Android.
